UAV Drone Jamming System, Vehicle-Mounted Drone Jammer with 3km Radar Detection system, Automatic Anti-Drone System

Brand Name : VBE

Model Number : VBE-DRV

Certification : ISO9001

Place of Origin : Shenzhen China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, ,Paypal

Supply Ability : 1000 sets per year

Delivery Time : About six working weeks

Packaging Details : Wooden packing

Name : Radar Vehicle-mounted UAV defense system

Coverage Range : up to 3km

Channels : 3 band or 8 band

Power supply : AC220V

Power Consumption : 120W or 370W

Contact Now

CCTV10 Reported UAV Drone Jamming System, Vehicle-Mounted Drone Jammer with 3km Radar Detection system, Automatic Anti-Drone System

3km Radar detection Vehicle-mounted UAV Drone defense system , Drone Signal Jammer,

Automatic Anti-Drone System

Product Instruction:

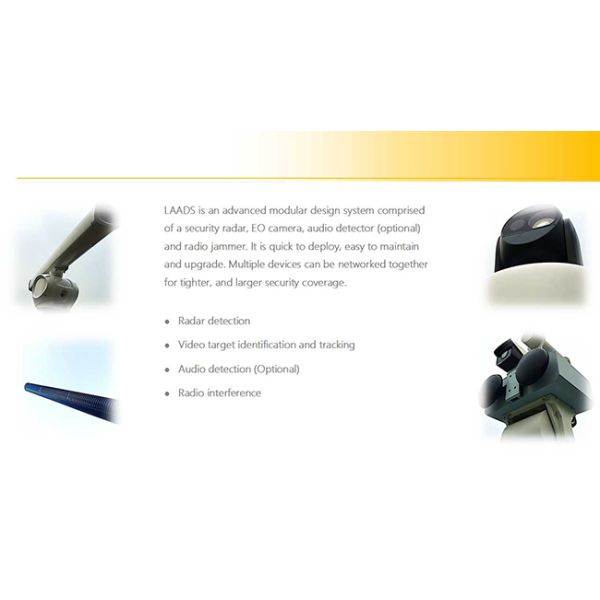

A photoelectric module with dual cameras is integrated in the system for the UAV detection and identification. System will keep tracking and identifying the suspicious target with the HD camera when the High-speed ball camera send out coordinate, and expel or force it to land automatically with EMI module when the UAV is identified.

Mobile UAV defense system can be extended with the Audio detection module, Radio detection module and Radar equipment. And multiple systems can be connected to the network for rapid deployment.

System performance:

Equipment	Parameter	Performance
Photoelectric module	Resolution	1080p
	Range	Clear sky: ≥ 1000 m
	Range	Night vision: ≥ 300 m
	Identification time	＜ 0.5S
	Multi-target processing capability	TWS,10 batches
Anti-UAV module	Band	2.4GHz, bandwidth 100MHz
		5.8GHz, bandwidth 40MHz
		1.5GHz, bandwidth 40MHz
	Power	Single frequency point: 47±1dBm
	Range	≥ 3000 m

Optional performance:

Equipment	Parameter	Performance
Radar	System	All solid-state pulse compression
	Frequency	Ku Band
	Radiation power	≤ 100W
	UAV detection range	TypeⅠ:≥ 1000 m(30cm≤Drone wingspan diameter≤50cm)
	UAV detection range	TypeⅡ:≥ 3000 m(1m≤Drone wingspan diameter)
	Multi-target processing capability	TWS, ＞ 20 batches
	Antenna rotating speed	15 rpm

More infomation about our Radar Vehicle-mounted UAV defense system:
